Food Applications

Pneumatic Conveying Food Products with No Maintenance, No Dust, No Moving Parts… since 1961

Fox Venturi Eductors are in use at hundreds of food and pet food plants.

Fox Venturi Eductor
The Fox Venturi Eductor, right, eliminates the need for rotary airlocks on food plant pneumatic conveying systems.

Materials of Construction:

  • Food Grade CIP 316SS
  • Ceramic-Lined
  • Teflon (PTFE) and other non-stick coatings
  • Line Sizes: 1″ to 16″ convey lines
  • Distances: Up to 300 ft.
  • Rates: 1 lb/min to 30,000 lb/hr

Fox Sanitary Eductor
Standard, off-the-shelf Sanitary Eductors (1″ through 4″ line sizes) have tri-clamp ends,
however any end connections can be specified

What Food Products Have Been Conveyed with Fox Eductors?

Beans
Bread Crumbs
Cake Mix
Cinnamon
Cocoa Powder
Corn Snacks
Dextrose
Flour
IQF Vegetables
Lactose
Maltrin
Milk Powders
Oat Fibers
Peanuts
Pet Food
Starch
Sugar, Salt, & Spices
Tea Powder
Vitamins
Walnut Shells
Wheat Germ
Whey
REQUEST A QUOTE!

Applications of Fox Venturi Eductors in Food Plants

Conveying from Screw Feeders

Fox Eductors are installed under hundreds of screw feeders, delivering precisely dosed rates of additives, spices, vitamins, etc. to mixers and other processes. Unlike rotary valves, there is no blowback up into the feeder.

Fox Sanitary Eductor under Screw Feeder

Injecting SiO2, Spices, Vitamins, Minor Ingredients, and Other Additives Directly into Existing Pneumatic Convey Lines

Fox Eductors provide the simplest, no dust, no maintenance way to inject SiO2 and other additives directly into larger pneumatic conveying lines at pressures up to 8 psig.

Fox Additive Feed Eductor Sketch

Conveying from Bulk Bags

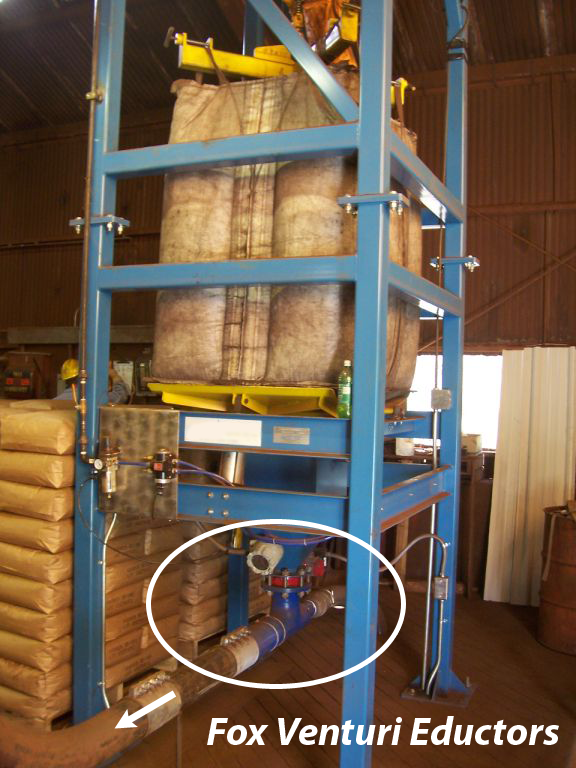

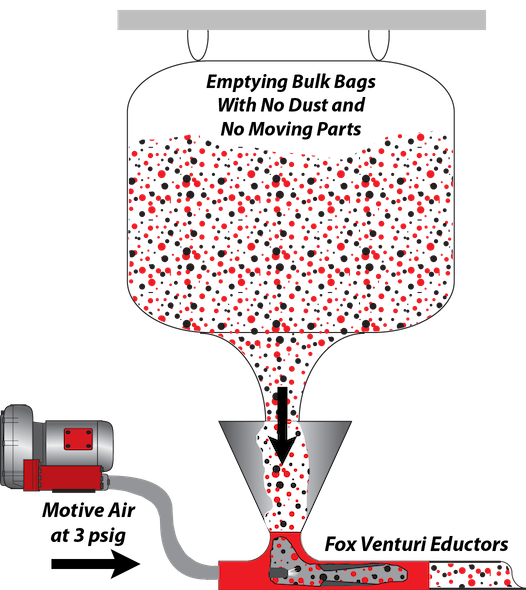

Fox Eductors are installed directly under bulk bags. Unlike rotary airlocks, they create a vacuum and convey product with no blowback or fugitive dust.

Bulk Bag Unloader Diagram
Bulk Bag Unloader Photo

Conveying Milk Powders, Coffee Powders, etc. from Spray Dryers

Fox Sanitary Eductors are installed under hundreds of spray dryers conveying milk powders, whey, casein, coffee powder, dried blood, etc.

REQUEST A QUOTE!

Conveying Sticky Products

Fox Eductors can be internally coated with Teflon and a wide variety of other high-release coatings for handling somewhat sticky materials.

Teflon coated Solids Conveying Eductor

Conveying Fragile Products

Fox Eductors are very often installed instead of rotary airlocks when product damage must be minimized or eliminated during conveying. They are commonly used with pet foods, breakfast cereals, extruded snack foods, coffee beans, etc. Convey velocity can be carefully controlled with an optional bleed valve kit or a blower VFD. Degradation trials are available at Fox Valve’s test lab in NJ.

Fox Eductor under Extruder Sketch

Convey from Silos

Fox eductors do not need metered feed. Open a slide gate valve and they can convey any free flowing particulate – with no dust, no blowback, and no maintenance.

Fox Eductor Conveying Starch

Convey IQF Frozen Fruits

Fox eductors are used to convey frozen berries, apple bits, chopped celery and carrots, etc. With no moving parts, cold temperatures have no effect.

Convey from Cyclones and Dust Collectors

Fox Eductor under Dust Collector
A Fox Eductor, driven by a small blower running at 2-3 psig,
conveys dust from a large dust collector.
REQUEST A QUOTE!

Convey from Bag Dump Hoppers, Packing Room Reclaim

Fox eductors are installed under hoppers for dust-free, maintenance-free conveying from bag dump stations. Fox eductors are often located directly in the packing area, where product from damaged bags can be dumped into a hopper and conveyed back to the packaging line with no degradation of final products.

Fox can supply the complete bag dump hopper assembly, with features such as slide gate valves, lids, grates, and blower controls.

Bag Dump Eductor
Pet Food Bag Dump Eductor



Convey from Grinders, Screeners, Sifters, and Sieves

Fox eductors are installed under hundreds of grinders, screeners, and sifters. Unlike rotary airlocks, eductors do not create blowback that pulses up into the screen, severely interfering with screening efficiency. Moreover, low profile Fox Eductors can slip under very low outlets.

Eductor under Screener Discharge

Fox Eductor Screener Clearance Height

Convey from Multiple Feeders for Batch Manufacturing

Multiple Fox Eductors can be driven with one blower to handle multiple ingredients, delivered to one mixer in a batch process.

Convey Powders with Water – Slurry Eductors

Please visit our Slurry Eductor page for more information about Fox Liquid Slurry Eductors.
